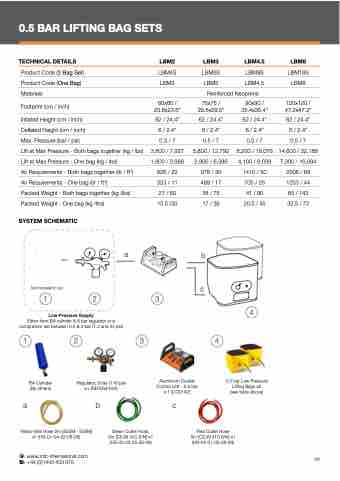

Page 49 - MFC Product Catalogue 2024

0.5 BAR LIFTING BAG SETS
TECHNICAL DETAILS
Product Code (2 Bag Set) Product Code (One Bag) Materials
Footprint (cm / inch)
Inflated Height (cm / inch)
Deflated Height (cm / inch)
Max. Pressure (bar / psi)
Lift at Max Pressure - Both bags together (kg / lbs) Lift at Max Pressure - One bag (kg / lbs)
Air Requirements - Both bags together (ltr / ft3) Air Requirements - One bag (ltr / ft3)
Packed Weight - Both bags together (kg /lbs) Packed Weight - One bag (kg /lbs)
LBM2
LBM4S
LBM2
60x60 / 23.6x23.6”
62 / 24.4”
6 / 2.4”
0.5 / 7
3,600 / 7,937
1,800 / 3,968
626 / 22
323 / 11
27 / 60
13.5 /30
LBM3
LBM6S
LBM3
LBM4.5
LBM9S
LBM4.5
LBM8
LBM16S
LBM8
120x120 / 47.2x47.2”
62 / 24.4”
6 / 2.4”
0.5 / 7
14,600 / 32,188
7,300 / 16,094
2506 / 89
1253 / 44
65 / 143
32.5 / 72
Reinforced Neoprene
75x75 / 29.5x29.5”
62 / 24.4”
6 / 2.4”
0.5 / 7
5,800 / 12,792
2,900 / 6,396
978 / 35
489 / 17
34 / 75
17 / 38
b
90x90 / 35.4x35.4”
62 / 24.4”
6 / 2.4”
0.5 / 7
8,200 / 18,076
4,100 / 9,038
1410 / 50
705 / 25
41 / 90
20.5 / 45
SYSTEM SCHEMATIC
Not included in set
a
123
Low-Pressure Supply
Either from BA cylinder & 8 bar regulator or a compressor set between 0.5 & 3 bar (7.3 and 44 psi)
c
4
1234
BA Cylinder Regulator, 8 bar (116 psi) (By others) x1 (RE0034/004)
Aluminium Double Control Unit - 0.5 bar x 1 (CO0142)
0.5 bar Low Pressure Lifting Bags x2 (see table above)
abc
Yellow Inlet Hose 2m [S25M - S25M] x1 (HS-01-04-02-06-06)
: www.mfc-international.com : +44 (0)1443 433 075
Green Outlet Hose, 5m [CEJN 410 S/N] x1 (HS-02-02-05-28-29)
Red Outlet Hose 5m [CEJN 410 S/N] x1 (HS-02-01-05-28-29)
48
