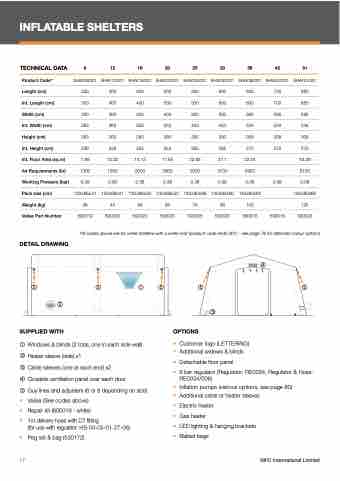

Page 78 - MFC Product Catalogue 2024

INFLATABLE SHELTERS
TECHNICAL DATA 9 12 16 20 25 30 36 42 51
Product Code*
Length (cm)
Int. Length (cm)
Width (cm)
Int. Width (cm)
Height (cm)
Int. Height (cm)
Int. Floor Area (sq.m)
Air Requirements (ltr)
Working Pressure (bar)
Pack size (cm)
Weight (kg)
Valise Part Number
DETAIL DRAWING
SHW/09/001 SHW/12/001 SHW/16/001
300 400 400
300 400 400
300 300 400
263 263 353
263 263 280
238 238 254
7.89 10.52 14.12
1300 1850 2600
0.38 0.38 0.38
120x66x41 120x66x41 130x66x50
36 45 58
590019 590020 590020
SHW/20/001 SHW/25/001 SHW/30/001 SHW/36/001 SHW/42/001
SHW/51/001
500 500 600 600 700 850
500 500 600 600 700 850
400 500 500 595 595 595
353 453 453 534 534 534
280 290 290 308 308 308
254 265 265 275 275 275
17.65 22.65 27.1 32.04 45.39
2900 3050 3700 5900 8100
0.38 0.38 0.38 0.38 0.38 0.38
130x66x50 140x80x66 140x80x60 140x80x60
160x80x66
68 78 88 105 125
590025 590025 590025 590016 590016
590022
*All codes above are for white shelters with a white roof (product code ends 001) - see page 79 for alternate colour options
 

SUPPLIED WITH
 Windows & blinds (2 total, one in each side wall)  Heater sleeve (side) x1
 Cable sleeves (one at each end) x2
 Closable ventilation panel over each door
 Guy lines and adjusters (6 or 8 depending on size)
• Valise (See codes above)
• Repair kit (600019 - white)
• 1m delivery hose with D7 fitting
(for use with regulator: HS-04-05-01-27-06)
• Peg set & bag (530172)

77
MFC International Limited
OPTIONS
• •
• •
• •
• • • •
Customerlogo(LETTERING) Additionalwidows&blinds
Detachablefloorpanel
8 bar regulator (Regulator: RE0034, Regulator & Hose: RE0034/006)
Inflation pumps (various options, see page 80) Additionalcableorheatersleeves
Electricheater
Gasheater LEDlighting&hangingbrackets Ballastbags
