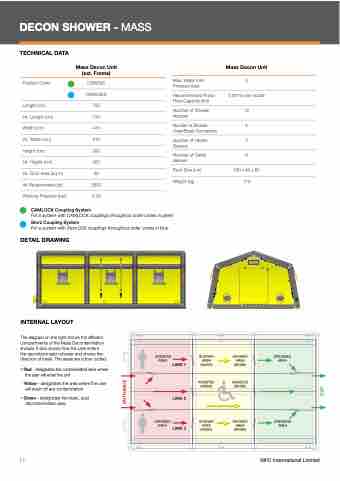

DECON SHOWER - MASS
TECHNICAL DATA
Product Code
Length (cm)
Int. Length (cm)
Width (cm)
Int. Width (cm)
Height (cm)
Int. Height (cm)
Int. Floor Area (sq.m)
Air Requirements (ltr)
Working Pressure (bar)
CAMLOCK Coupling System
Mass Decon Unit
Max. Water Inlet 3 Pressure (bar)
Recommended Pump Flow-Capacity (ltrs)
5 ltr/min per nozzle
Number of Shower Nozzles
12
Number of Shower Hose/Brush Connectors
4
Number of Heater Sleeves
2
Number of Cable sleeves
6
Mass Decon Unit (ext. Frame)
DSW026
DSW026S
750
730
470
410
290
260
30
3800
0.38
Pack Size (cm)
Weight (kg)
160 x 80 x 60
110
For a system with CAMLOCK couplings throughout order codes in green
Storz Coupling System
For a system with Storz D25 couplings throughout order codes in blue
DETAIL DRAWING
INTERNAL LAYOUT
The diagram on the right shows the different compartments of the Mass Decontamination shower. It also shows how the user enters
the decontamination shower and shows the direction of travel. The areas are colour coded:
• Red - designates the contaminated area where the user will enter the unit
• Yellow - designates the area where the user will wash off any contamination
• Green - designates the clean, post decontamination area
UNDRESS
AREA LANE 1
SHOWER AREA (WASH)
SHOWER AREA (RINSE)
DRESSING AREA
ASSISTED ASSISTED (WASH) (RINSE)
LANE 2
UNDRESS
AREA LANE 3
SHOWER AREA (WASH)
SHOWER AREA (RINSE)
DRESSING AREA
ENTRANCE
EXIT
