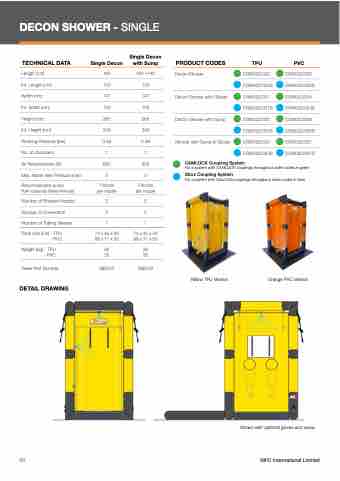

Page 66 - MFC Product Catalogue 2024

DECON SHOWER - SINGLE
TECHNICAL DATA
Single Decon
Single Decon with Sump
PRODUCT CODES
TPU
PVC
Length (cm)
Int. Length (cm)
Width (cm)
Int. Width (cm)
Height (cm)
Int. Height (cm)
Working Pressure (bar)
No. of chambers
Air Requirements (ltr)
Max. Water Inlet Pressure (bar)
Number of Shower Nozzles
Number of Connectors
Number of Tubing Sleeves
Valise Part Number
DETAIL DRAWING
160
120
147
100
265
240
0.38
1
650
3
2
2
1
590010
160 +140
120
147
100
265
240
0.38
1
825
3
2
2
1
590019
Decon Shower
Decon Shower with Gloves
Decon Shower with Sump
Shower with Sump & Gloves
DSW022/020
DSW022/020S
DSW022/021
DSW022/021S
DSW022/022
DSW022/022S
DSW022/023
DSW022/023S
DSW022/025
DSW022/025S
DSW022/024
DSW022/024S
DSW022/026
DSW022/026S
DSW022/027
DSW022/027S
CAMLOCK Coupling System
For a system with CAMLOCK couplings throughout order codes in green
Storz Coupling System
For a system with Storz D25 couplings throughout order codes in blue
Recommended pump 7 ltr/min 7 ltr/min flow-capacity (liters/minute) per nozzle per nozzle
Pack size (cm) - TPU - PVC
74 x 45 x 30 88 x 71 x 50
74 x 45 x 30 88 x 71 x 50
Weight (kg) - TPU - PVC
25 32
28 35
65
MFC International Limited
Yellow TPU Version
Orange PVC Version
Shown with optional gloves and sump
